10-600 t/h Capacity:
4.5-107 m³ Effective Volume:

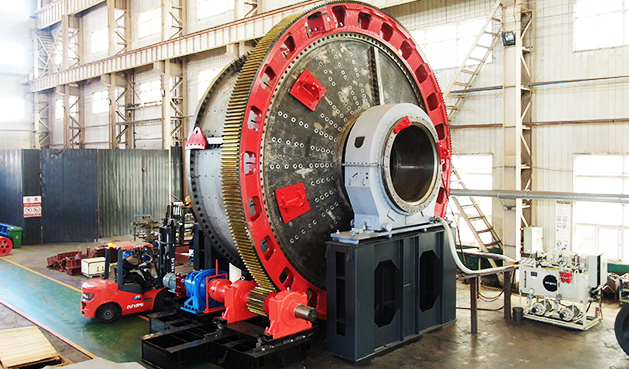

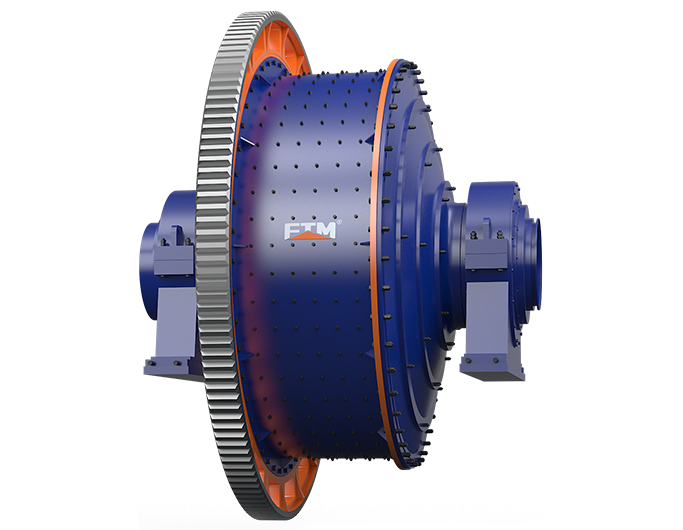

The Autogenous Mill (AG Mill) is a large-scale grinding machine designed for mining and mineral processing applications. It uses the ore itself as the primary grinding medium, reducing ore size through continuous impact, collision, and grinding inside the rotating cylinder. With large processing capability and efficient grinding performance, it is suitable for various metal ores, including iron ore, gold ore, copper ore, nickel ore, and manganese ore.

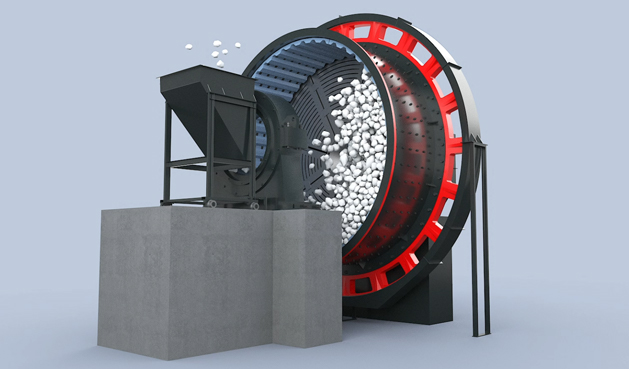

The Autogenous Mill mainly uses the ore itself as the grinding medium. The ore enters the rotating mill cylinder through the feeding system. As the cylinder rotates, the ore is lifted to a certain height and then falls under gravity, creating impact, collision, and grinding between the ore particles, gradually reducing the particle size. After continuous grinding, the material reaches the required size and is discharged from the discharge end for subsequent classification or mineral separation processes.
Effective volume up to 107 m³, motor power up to 2500 kW.
01Uses the ore itself as the grinding medium.
02Suitable for iron ore, gold ore, copper ore, and more.
03Cylinder diameter from 2400-7500 mm for different project needs.
04Nearly 40 years of production experience, well welcomed by customers from 90+ countries.
Expert design as your order and requirement, with all-around solutions to your problems.
Reasonable plan for grinding procedure and scientific production to help you to gain more profits.
Regular inspection and return visit, and solve your after-sale problems in time.
| Model | Cylinder | Effective Volume (m³) |
Speed (r/min) |
Main Motor (KW) |
|
| Diameter (mm) | Length (mm) | ||||
| MZ-2410 | 2400 | 1000 | 4.5 | 22 | 55 |
| MZ-3212 | 3200 | 1200 | 9.2 | 18.2 | 160 |
| MZ-4014 | 4000 | 1400 | 16.6 | 17.6 | 245 |
| MZ-5518 | 5500 | 1800 | 34.6 | 15 | 800 |
| MZ-6433 | 6400 | 3300 | 107 | 12.8 | 2000 |
| MZ-6724 | 6700 | 2400 | 80.5 | 12.5 | 2000 |
| MZ-7525 | 7500 | 2500 | 107 | 11.4 | 2500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Effective Volume (m³) |
Speed (r/min) |
Main Motor (KW) |
| MZ-2410 | 4.5 | 22 | 55 |
| MZ-3212 | 9.2 | 18.2 | 160 |
| MZ-4014 | 16.6 | 17.6 | 245 |
| MZ-5518 | 34.6 | 15 | 800 |
| MZ-6433 | 107 | 12.8 | 2000 |
| MZ-6724 | 80.5 | 12.5 | 2000 |
| MZ-7525 | 107 | 11.4 | 2500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
Henan Fote Heavy Machinery Co., Ltd., has been in existence for more than 40 years since its establishment. It has four production bases in China and its products are sold to more than 160 countries around the world, including South Africa, Tanzania, Nigeria, Botswana, Uganda, United Arab Emirates, Ghana, Sierra Leone, India, Indonesia, Singapore, Australia, Sri Lanka, Vietnam, Bangladesh, etc.
If your machine fails, production at the entire plant will be at risk. To avoid such losses, you can get critical replacement parts of the machine whenever you need it.
Our products support global logistics network distribution, ensuring that FTM brand spare parts or consumables are available when you need it.
Our fixed-model machines and consumables are available from stock to ensure customers get the machines they need in time.
